H 264 Full D1 reset password 8 channel Car dvr camera 720P AHD Camera 8CH HDD MDVR

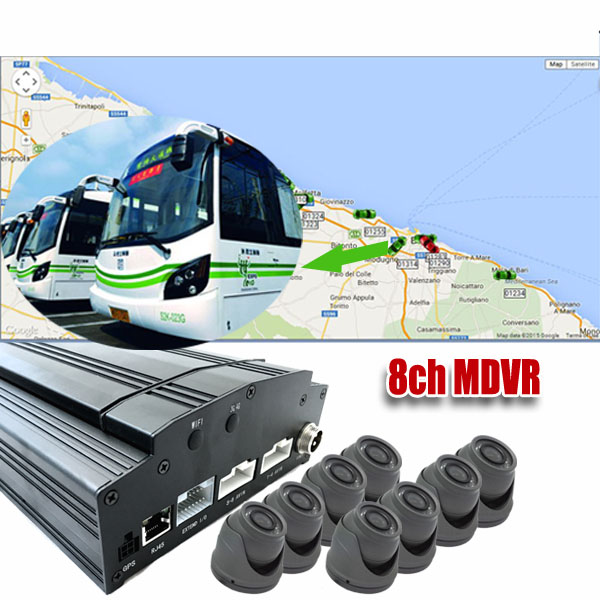

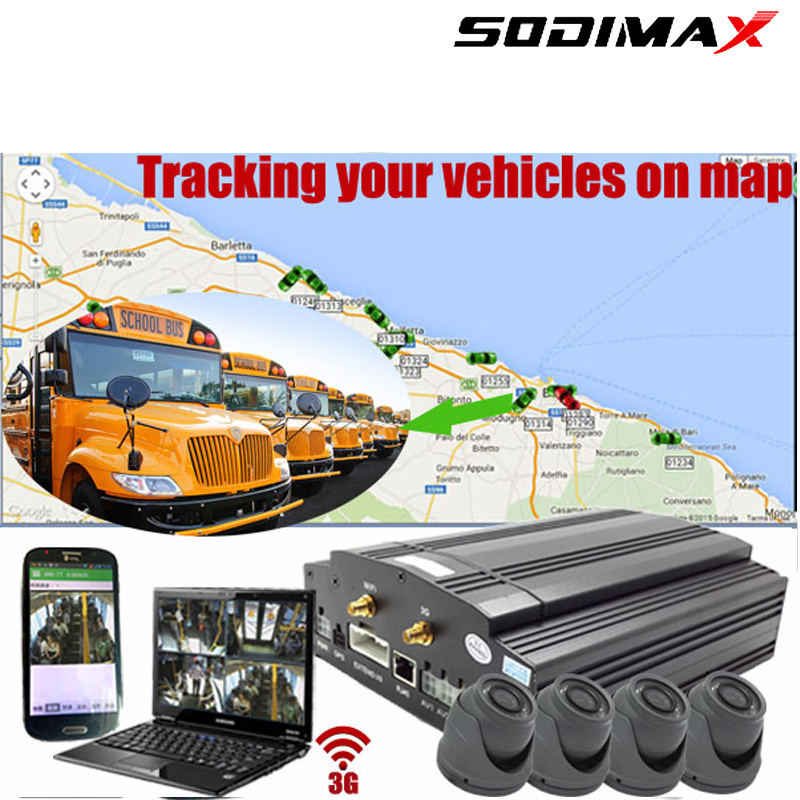

This MDVR supports 8 channel FULL D1 camera video recording.3G/4G wireless live video transmission on PC&phone remote control.With GPS positioning on google map or Baidu map.Auto downloading when connect to the Wifi.With RJ45 lan port,RS232&485,I/O port interface for multiple outer device integration.The storage max up to 2TB,which could lasts more than 80 days 720P video recording.
The whole security system including:
1) 4CH 720P AHD Camera HDD MDVR(hybrid 1&2CH 720P,3&4CH D1).
2) 1TB/2TB HDD or 128GB SD card storage.
3) UPS Technology (3~5s Power-off delay after power cut);
4) G-sensor/Speed sensor support.
5) 2way intercom support.
6) GPS positioning optional.
7) 3G/ 4G Remote View on PC or Smartphone.
8) Supports talkback function (2 Ways Audio).
9) Geo-Fence/ Remote Engine Stopping/ Remote Oil Cut, etc;
10) Welcome OEM ODM for VPN MDVR or 3G/4G DVR with RFID.
Specification:
| Item | Description | ||
| OS | Linux | ||
| Graphics Operation Interface | System parameters can be set through external display and remote controller | ||
| Security Management | 2-level management for user password, administrator password, supporting encrypted transmission | ||
| Video and Preview | Video Input, Output | 4-channel video input, 1channel video output; 1.0Vp-p, 75Ω | |
| OSD | Character superposition function, information superposition of time and date, device ID and GPS, etc. | ||
| Video Compression Format | Compression coding. Applying hisilicon hi-performance processor. | ||
| Dual-Stream | Supported | ||
| Preview Function | Preview of 1-channel, 4-image stitching, supporting full screen triggered by event and switching of stitched images | ||
| Frame Rate | PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel | ||
| Resolution | CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most | ||
| Quality | Grade 1 to grade 5 for selection (descending) | ||
| Bit Rate | CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection | ||
| Audio | Audio Input, Output | 4-channel input, 1-channel output | |
| Compression Format | G.726 coding | ||
| Recording | Storage Medium | Supporting one 2.5” hard drive and one SD card, which supports up to 32G, supporting data redundancy storage technology; | |
| File Format/ System | ASF/FAT32 | ||
| Video Strategies | Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording | ||
| Video Search | Searching by time, type, storage device and other conditions | ||
| Video Playback | Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files | ||
| Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time | |||
| Alarm | Alarm Input/ Output | 6-channel on/off signal alarm input, 1-channel on/off signal alarm output | |
| Alarm Recording | Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min | ||
| Storage Space Alarm | Supporting settings for alarm of storage space | ||
| Function Alarm | GPS overspeed alarm, acceleration alarm, motion detection alarm | ||
| Communication Ports | RS232, RJ45 10M/100M self-adaptable network interface | ||
| Wireless Transmission (Optional) | Supporting Wi-Fi; | ||
| GPS (Optional) | Supporting external GPS | ||
| PTZ Control | Supporting PTZ control realized by local; | ||
| Parameter Configuration | Supporting parameter configuration functions for mobile DVR coding channel; | ||
| G-Sensor | Embedded | ||
| System Upgrading | Supporting SD card, hard drive upgrading and remote upgrading | ||
| Power Supply and Power Consumption | Power Supply | 1. ACC on/off 2. Hard drive lock on/off 3. Delayed shutdown 4. Timed on/off | |
| Input Voltage | DC:+8V ~ +36V | ||
| Output Voltage | +12V@4*0.5A; +5V@0.5A | ||
| Power-off Protection | With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure | ||
| Power Consumption | <10W in normal operation; <0.5W in standby mode | ||
| Operating Environment | Temperature | Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃ | |
| Humidity | 10% to 95% | ||
| Dimensions | 160(W) x62(H) x200(D) mm. | ||
| Weight | Net: 2200g, Gross: 3500g | ||
